High Grade Powder Coated Aluminum Alloy Profiles For Curtain Wall Frame

Welcome to choose our curtain wall system profiles, we could custom all color for you.
  • Delivery Port:

    Foshan, China
  • Production Capacity:

    700000 Tons/Year
  • Payment Terms:

    L/C, T/T
  • Material:

    Aluminum Alloy
  • Open Style:

    as Designs
  • Opening Pattern:

    Horizontal
  • Surface Finishing:

    Finished
  • Standard:

    EN755
  • Transport Package:

    Wood
  • Origin:

    China
  • Function:

    Heat Insulation, Soundproof, Anti-Theft, Airproof, Insect-proof, Dust-proof, Invisible, Decoration

  • Product Detail

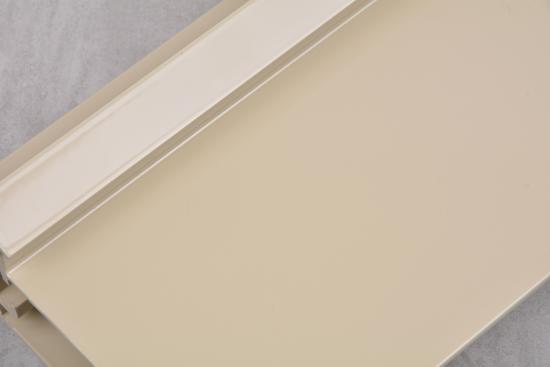

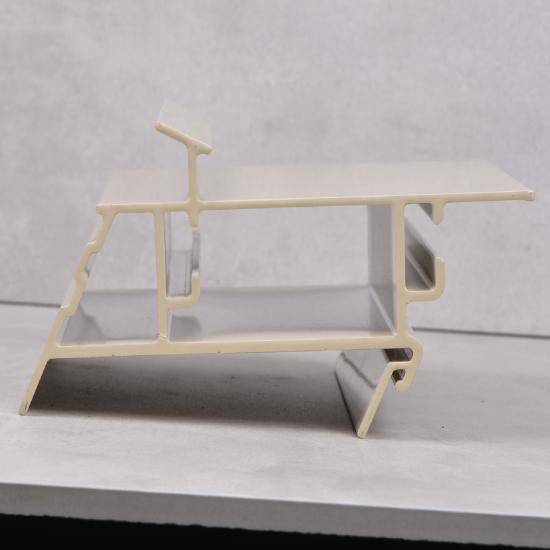

High Grade Powder Coated Aluminum Alloy Profiles For Curtain Wall Frame


Aluminum profile is one of the most common use building materials in curtain wall. The curtain wall is located on the exterior surface of the building and is often affected by unfavorable factors of the natural environment, such as the sun, rain, sand erosion. Therefore, it requires sufficient weather resistance and durability of curtain wall materials. With weatherproof, anti-sun, anti-theft, anti-impact, thermal insulation and other functions. The aluminum profile for curtain wall should be surface anodized, electrophoretic painted, powder sprayed or fluorocarbon paint spray treatment to ensure the durability of the curtain wall.



Business Type Manufacturer
Material Grade 6000 series Aluminium Alloy
Standard GB 5237-2008, ASTM B221, EN755-9, EN12020, JIS.
Surface Treatment Mill finish, Powder Coating, Anodizing, Wooden grain coating, Polishing, Eletrophoresis, PVDF, Sanding blasting, etc.
Further Process Ability Drilling, Bending, welding, precise cutting, punching, fabrication of finished products, etc.
Specification Alloy: 6063, 6060, 6005, 6061, 6082, etc.
State: T4-T6.
Length: 3m-12m.
Wall thickness: >0.7mm.
Anodizing thickness: 10, 12, 15, 20, 25 microns.
Powder coating thickness: >40 microns, >60 microns.
Tensile strength: >16mpa.  Customized standard.
Yield strength: >110mpa.  Customized standard.
Extensibility: >8%.  Customized standard.
Hardness(HW): >8.  Customized standard.
Designs and tolerances As per drawings or samples.Tolerance will be shown on each drawing
Moulds / Dies Making moulds and producing as per desgined drawing
1. Using our existing moulds, no extra charge
2. Using Client drawings, cutting new mould. The mould fee will be paid back when quantity reach target in 1 year.
Application ALL CUSTOMIZED. Windows and doors, curtain wall, fence, standard shape ( tube, pipe, channel, angle, bar, T, C, U, etc. ), industrial ( heat sink, solar frame, conductor rail, car, cellphone, etc. ), kitchen cabinet, wardrobe, railing, furniture, office partition, roller shutter, sun room, etc.
Certificate CE, ISO9001,OHSAS18001,ISO14001,Qualanod, Qualicoat.
Quality Control 1. Inspection at Site.
2. Inspection Before Shipping.
3. Testing Machine.
Packing Protective film sticked on profile's visible surface, foam paper interleave each piece.
Adequate pieces wrapped in small bundle by shrink plastic film / kraft paper. Labels with the client's logo on both end of the package.
Bulk load into container. Or packing in big bundle by wooden frame, put on steel rack.
Lead Time of Goods 15-20days
Lead Time of Moulds 7-15days
Normal Order Sequence 1.Conform the drawings, colors and price;
2.Pay the mould fee and we start to make moulds;
3.We send samples to you for your confirmation;
4.Make the payment of 30% deposit, we start production;
5.Delivery.
Payment Term T/T, L/C at sight.
Container type  20'GP, 40'GP, 40'HQ, 45'HQ.
Minimum order quantity 1x 20'GP FOB for FCL or 5 TONS EXW for LCL.
Origin Foshan City, Guangdong Province, China.



Production Equipments :


  • 70 Extrusion Production Lines (From 600 Tons to 5500 Tons)
  • 10 Casting Production Lines
  • 7 Powder Coating Production Lines
  • 11 Anodizing and Electrophoresis Production Lines
Total Annual Output can reach 500,000 tons.

Guang Ya Aluminium


aluminium extrusion plant


guangya aluminium





Before each batch of goods is shipped, Guangya will control the quality of the goods through strict inspection.





Guangya has a professional loading platform to ensure that your goods can be loaded into the container in good condition.
